• Measurement and reading of azimuth of dip and angle of dip in one single operation (according to Clar method)
  • Declination (± 30°) and inclination adjustable
  • Automatic arresting of needle when not in use
  • Eddy current damping allows reading after approx. 3 sec.
  • Transparent circle with diameter 50mm with interval of graduation 1°
  • Dip measurement range 270° graduated in 5°
  • Reading by estimation 1°
  • Deep etched tracing edge graduated (60mm)
  • Circular spirit level (observable also from underneath)

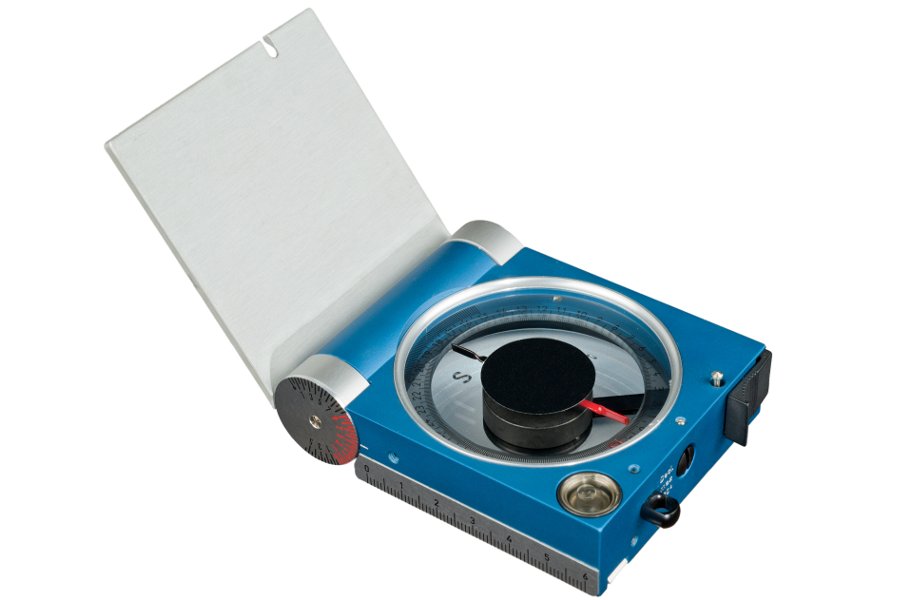

Professional geological compass with many features for precise geological work
